No version for distro humble showing melodic. Known supported distros are highlighted in the buttons above.

Package Summary

Tags No category tags.
Version 2.0.0
License Apache License 2.0
Build type CATKIN
Use RECOMMENDED

Repository Summary

Description CRANE-X7 ROS / ROS 2 Packages.
Checkout URI https://github.com/rt-net/crane_x7_ros.git
VCS Type git
VCS Version master
Last Updated 2023-09-29
Dev Status DEVELOPED
Released UNRELEASED
Tags robot ros gazebo ros2 crane-x7
Contributing Help Wanted (-)
Good First Issues (-)
Pull Requests to Review (-)

Package Description

examples of CRANE-X7 ROS package

Additional Links

No additional links.

Maintainers

  • RT Corporation

Authors

  • Daisuke Sato
  • Hiroyuki Nomura
English 日本語

crane_x7_examples

This package includes examples to control CRANE-X7 using crane_x7_ros.

How to launch CRANE-X7 base packages

  1. Connect a communication cable from CRANE-X7 to a PC.
  2. Open terminal and launch demo.launch of crane_x7_bringup package.

This launch file has an argument to select CRANE-X7 or virtual CRANE-X7:

  • fake_execution (default: true)

Using virtual CRANE-X7

Launch virtual CRANE-X7 base packages with the following command:

roslaunch crane_x7_bringup demo.launch fake_execution:=true

Using real CRANE-X7

Launch the base packages with the following command:

roslaunch crane_x7_bringup demo.launch fake_execution:=false

Default serial port name is /dev/ttyUSB0. To change port name (e.g. /dev/ttyUSB1), launch the packages with arguments:

roslaunch crane_x7_bringup demo.launch fake_execution:=false port:=/dev/ttyUSB1

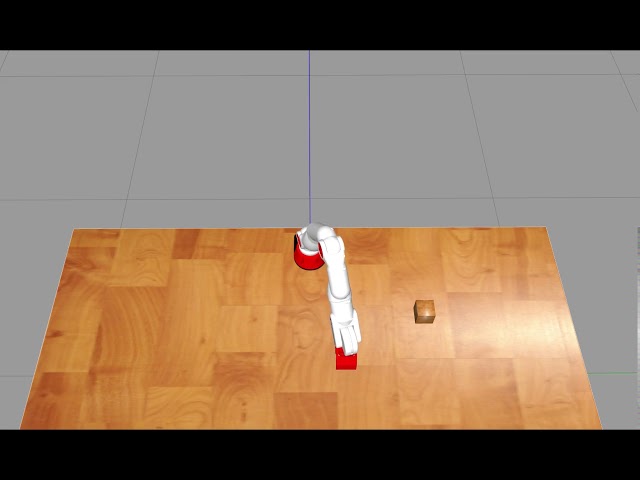

Using Gazebo simulator

Launch the packages with the following command:

roslaunch crane_x7_gazebo crane_x7_with_table.launch

Run Examples

Following examples will be executable after launch CRANE-X7 base packages.


gripper_action_example

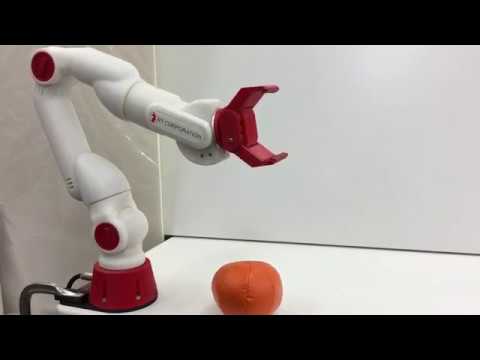

This is an example to open/close the gripper.

Run a node with the following command:

rosrun crane_x7_examples gripper_action_example.py

<img src=https://rt-net.github.io/images/crane-x7/gazebo_gripper_example.gif width=500px />

back to example list


pose_groupstate_example

This is an example using group_state of SRDF.

CRANE-X7 changes its posture to home and vertical listed in SRDF file crane_x7_moveit_config/config/crane_x7.srdf.

Run a node with the following command:

rosrun crane_x7_examples pose_groupstate_example.py

<img src=https://rt-net.github.io/images/crane-x7/gazebo_pose_groupstate.gif width=500px />

back to example list


File truncated at 100 lines see the full file

CHANGELOG
No CHANGELOG found.

Dependant Packages

Name Deps
crane_x7

Messages

No message files found.

Plugins

No plugins found.

Recent questions tagged crane_x7_examples at Robotics Stack Exchange
