autoware/core_perception/imm_ukf_pda_track/README.md

IMM-UKF-PDA Tracker

Autoware package based on IMM-UKF-PDA tracker.

  • From a sourced terminal:

roslaunch lidar_tracker imm_ukf_pda_tracker.launch

  • From Runtime Manager:

Computing Tab -> Detection/ lidar_detector -> imm_ukf_pda_tracker

Reference

A. Arya Senna Abdul Rachman, 3D-LIDAR Multi Object Tracking for Autonomous Driving. 2017. paper

M. Schreire, Bayesian environment representation, prediction, and criticality assessment for driver assistance systems. 2017. paper

Requirements

  • eucledian_cluster node.
  • ray_ground_filter node.
  • /tf topic. Below video is from Suginami data which contais /tf topic: (autoware-20180205150908.bag). You can download it from ROSBAG STORE for free. Otherwise, you need to do localization with a map to produce /tf topic from velodyne to world.
  • wayarea info from vectormap if is possible.

Parameters

Launch file available parameters for imm_ukf_pda_tracker

Parameter Type Description
tracker_input_topic String Input topic(type: autoware_msgs::CloudClusterArray). Default /cloud cluster.
tracker_output_topic String Output topic(type: autoware_msgs::CloudClusterArray). Default /tracking_cluster_array.
life_time_threshold Int The minimum frames for targets to be visualized. Default 8.
gating_threshold Double The value of gate threshold for measurement validation. Default 9.22.
gate_probability Double The probability that the gate contains the true measurement. Default 0.99.
detection_probability Double The probability that a target is detected. Default 0.9.
merge_distance_threshold Double The distance threshold for associating bounding box over frames. Default 0.5.
static_velocity_threshold Double The velocity threshold for classifying static/dynamic. Default 0.5.
static_num_history_threshold Int The amount of frames the velocity is averaged over to compare to static_velocity_threshold. Default 3.
prevent_explosion_threshold Double The threshold for stopping kalman filter update. Default 1000.
use_sukf bool Use standard kalman filter. Default false.

Launch file available parameters for visualize_detected_objects

Parameter Type Description
input_topic String Input topic(type: autoware_msgs::CloudClusterArray). Default /tracking_cluster_array.
pointcloud frame String Pointcloud frame. Default velodyne.

Subscribed topics

Node: imm_ukf_pda_tracker

Topic Type Objective
/detection/lidar_objects autoware_msgs::DetectedObjectArray Segmented pointcloud from a clustering algorithm like eucledian cluster.
/tf tf Tracking objects in world coordinate.

Node: visualize_detected_objects

Topic Type Objective
/detected_objects autoware_msgs::DetectedObjectArray Objects with tracking info.

Published topics

Node: imm_ukf_pda_tracker

Topic Type Objective
/detected_objects autoware_msgs::DetectedObjectArray Added info like velocity, yaw ,yaw_rate and static/dynamic class to DetectedObject msg.
/bounding_boxes_tracked jsk_recognition_msgs::BoundingBoxArray Visualze bounsing box nicely in rviz by JSK bounding box. Label contains information about static/dynamic class

Node: visualize_detected_objects

Topic Type Objective
/detected_objects/velocity_arrow visualization_msgs::Marker Visualize velocity and yaw of the targets.
/detected_objects/target_id visualization_msgs::Marker Visualize targets’ id.

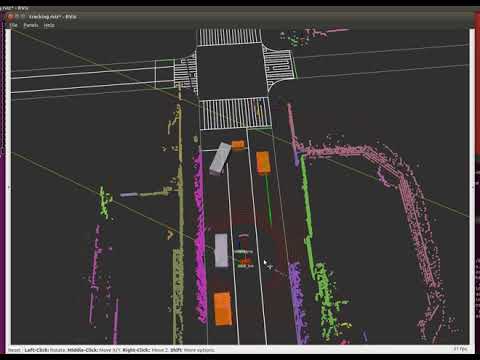

Video

IMM UKF PDA lidar_tracker Autoware

Benchmark

Please notice that benchmark scripts are in another repository. You can tune parameters by using benchmark based on KITTI dataset. The repository is here.

CHANGELOG

Changelog for package lidar_imm_ukf_pda_track

1.11.0 (2019-03-21)

  • [fix] Install commands for all the packages (#1861)

    • Initial fixes to detection, sensing, semantics and utils

    • fixing wrong filename on install command

    • Fixes to install commands

    • Hokuyo fix name

    • Fix obj db

    • Obj db include fixes

    • End of final cleaning sweep

    • Incorrect command order in runtime manager

    • Param tempfile not required by runtime_manager

      • Fixes to runtime manager install commands

    • Remove devel directory from catkin, if any

    • Updated launch files for robosense

    • Updated robosense

    • Fix/add missing install (#1977)

    • Added launch install to lidar_kf_contour_track

    • Added install to op_global_planner

    • Added install to way_planner

    • Added install to op_local_planner

    • Added install to op_simulation_package

    • Added install to op_utilities

    • Added install to sync

      • Improved installation script for pointgrey packages

    • Fixed nodelet error for gmsl cameras

    • USe install space in catkin as well

    • add install to catkin

    • Fix install directives (#1990)

    • Fixed installation path

    • Fixed params installation path

    • Fixed cfg installation path

    • Delete cache on colcon_release
  • Fix license notice in corresponding package.xml
  • check for valid object before prediction
  • Adaptation of Object Filter with new perception workflow
  • Initial release of object filter
  • Contributors: Abraham Monrroy, Abraham Monrroy Cano, amc-nu

1.10.0 (2019-01-17)

  • Fixes for catkin_make
  • Switch to Apache 2 license (develop branch) (#1741)
    • Switch to Apache 2

    * Replace BSD-3 license header with Apache 2 and reassign copyright to the Autoware Foundation.

    • Update license on Python files
    • Update copyright years
    • Add #ifndef/define _POINTS_IMAGE_H_
    • Updated license comment
  • Use colcon as the build tool (#1704)
    • Switch to colcon as the build tool instead of catkin
    • Added cmake-target
    • Added note about the second colcon call
    • Added warning about catkin* scripts being deprecated
    • Fix COLCON_OPTS
    • Added install targets
    • Update Docker image tags
    • Message packages fixes
    • Fix missing dependency
  • Feature/perception visualization cleanup (#1648)
      • Initial commit for visualization package

File truncated at 100 lines see the full file

Package Dependencies

Deps Name
autoware_build_flags
catkin
autoware_msgs
amathutils_lib
pcl_ros
roscpp
roslint
tf
vector_map
lanelet2_extension

System Dependencies

No direct system dependencies.

Dependant Packages

Name Deps
naive_motion_predict

Launch files

  • launch/imm_ukf_pda_track.launch
      • namespace [default: tracking]
      • tracker_input_topic [default: /detection/objects]
      • tracker_output_topic [default: objects]
      • detection_probability [default: 0.9]
      • gate_probability [default: 0.99]
      • gating_threshold [default: 9.22]
      • life_time_threshold [default: 8]
      • merge_distance_threshold [default: 0.5]
      • prevent_explosion_threshold [default: 1000]
      • static_num_history_threshold [default: 3]
      • static_velocity_threshold [default: 0.5]
      • tracking_frame [default: map]
      • use_sukf [default: false]
      • use_map_info [default: false]
      • map_frame [default: map]
      • lane_direction_chi_threshold [default: 2.71]
      • nearest_lane_distance_threshold [default: 1.0]
  • launch/imm_ukf_pda_track_lanelet2.launch
      • namespace [default: tracking]
      • tracker_input_topic [default: /detection/objects]
      • tracker_output_topic [default: objects]
      • detection_probability [default: 0.9]
      • gate_probability [default: 0.99]
      • gating_threshold [default: 9.22]
      • life_time_threshold [default: 8]
      • merge_distance_threshold [default: 0.5]
      • prevent_explosion_threshold [default: 1000]
      • static_num_history_threshold [default: 3]
      • static_velocity_threshold [default: 0.5]
      • tracking_frame [default: map]
      • use_sukf [default: false]
      • use_map_info [default: false]
      • map_frame [default: map]
      • lane_direction_chi_threshold [default: 2.71]
      • nearest_lane_distance_threshold [default: 1.0]
  • launch/imm_ukf_pda_track_option.launch
      • use_ll2 [default: false]
      • namespace [default: tracking]
      • tracker_input_topic [default: /detection/objects]
      • tracker_output_topic [default: objects]
      • detection_probability [default: 0.9]
      • gate_probability [default: 0.99]
      • gating_threshold [default: 9.22]
      • life_time_threshold [default: 8]
      • merge_distance_threshold [default: 0.5]
      • prevent_explosion_threshold [default: 1000]
      • static_num_history_threshold [default: 3]
      • static_velocity_threshold [default: 0.5]
      • tracking_frame [default: map]
      • use_sukf [default: false]
      • use_map_info [default: false]
      • map_frame [default: map]
      • lane_direction_chi_threshold [default: 2.71]
      • nearest_lane_distance_threshold [default: 1.0]
