Package Description

The naive_motion_predict package

Additional Links

No additional links.

Maintainers

  • Kosuke Murakami

Authors

No additional authors.
autoware/core_perception/naive_motion_predict/README.md

Naive Motion Prediction

Autoware package for motion prediction.

  • From a sourced terminal:

roslaunch naive_motion_predict naive_motion_predict.launch

  • From Runtime Manager:

Computing Tab -> Prediction/ Motion Predictor -> naive_motion_predict

Requirements

  • ray_ground_filter node.
  • eucledian_cluster node.
  • /tf topic. velodyne to world.
  • imm_ukf_pda_tracker node.

Parameters

Launch file available parameters for naive_motion_predict

Parameter Type Description
input topic String Input topic(type: autoware_msgs::DetectedObjectArray). Default /detection/lidar_tracker/objects.
interval_sec Double Interval second for prediction. Default 9.22.
num_prediction Int The number of prediction this node will make. Default 0.99.
sensor_height Double Uses sensor height for visualized path’s height. Default 0.9.

Subscribed topics

Topic Type Objective
/detection/objects autoware_msgs::DetectedObjectArray The result topic from Autoware Detection stack

Published topics

Topic Type Objective
/prediction/objects autoware_msgs::DetectedObjectArray Added predicted objects to input data..
/prediction/motion_predictor/path_markers visualization_msgs::MarkerArray Visualzing predicted path in ros marker array

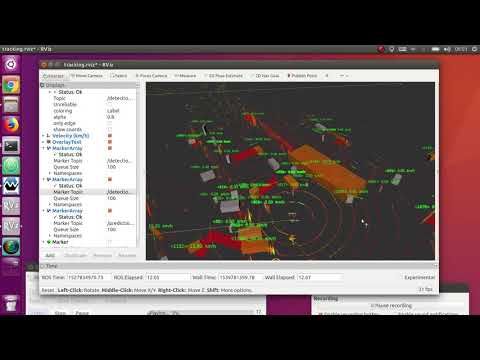

Video

Autoware: How to launch naive motion predict

CHANGELOG

Changelog for package naive_motion_predict

1.11.0 (2019-03-21)

  • [fix] not predicting objects at x<=0 or y<=0 (#2122)
  • [Feature] costmap generator (#1774)
      • Initial commit for visualization package

    • Removal of all visualization messages from perception nodes

    • Visualization dependency removal

    • Launch file modification

      • Fixes to visualization

    • Error on Clustering CPU

    • Reduce verbosity on markers

    • Publish acceleration and velocity from ukf tracker

    • Remove hardcoded path

    • Updated README

    • updated prototype

    • Prototype update for header and usage

    • Removed unknown label from being reported

    • Updated publishing orientation to match develop

      • Published all the trackers

    • Added valid field for visualization and future compatibility with ADAS ROI filtering

    • Add simple functions

      • Reversed back UKF node to develop

    • Formatted speed

    • Refactor codes

    • Make tracking visualization work

    • Relay class info in tracker node

    • Remove dependency to jskbbox and rosmarker in ukf tracker

    • apply rosclang to ukf tracker

    • Refactor codes

    • Revert "apply rosclang to ukf tracker"

    • Revert "Remove dependency to jskbbox and rosmarker in ukf tracker"

    • Revert "Relay class info in tracker node"

    • delete dependency to jsk and remove pointcloud_frame

    • get direction nis

    • set velocity_reliable true in tracker node

    • Add divided function

    • add function

    • Sanity checks

    • Relay all the data from input DetectedObject

    • Divided function work both for immukf and sukf

    • Add comment

    • Refactor codes

    • Pass immukf test

    • make direction assisted tracking work

    • Visualization fixes

    • Refactor codes

    • Tracker Merging step added

    • Added launch file support for merging phase

    • lane assisted with sukf

File truncated at 100 lines see the full file

Package Dependencies

Deps Name
autoware_build_flags
catkin
autoware_msgs
imm_ukf_pda_track
roscpp
sensor_msgs
tf

System Dependencies

No direct system dependencies.

Dependant Packages

No known dependants.

Launch files

  • launch/naive_motion_predict.launch
    • Launch file for naive_motion_predict
      • interval_sec [default: 0.1]
      • num_prediction [default: 10]
      • sensor_height [default: 2.0]
      • filter_out_close_object_threshold [default: 1.5]
      • input_topic [default: /detection/objects]

Messages

No message files found.

Services

No service files found

Plugins

No plugins found.
