Isaac ROS AprilTag

NVIDIA-accelerated AprilTag detection and pose estimation.

Overview

Isaac ROS AprilTag contains a ROS 2 package for detection of AprilTags, a type of fiducial marker that provides a point of reference or measure. AprilTag detections are NVIDIA-accelerated for high performance.

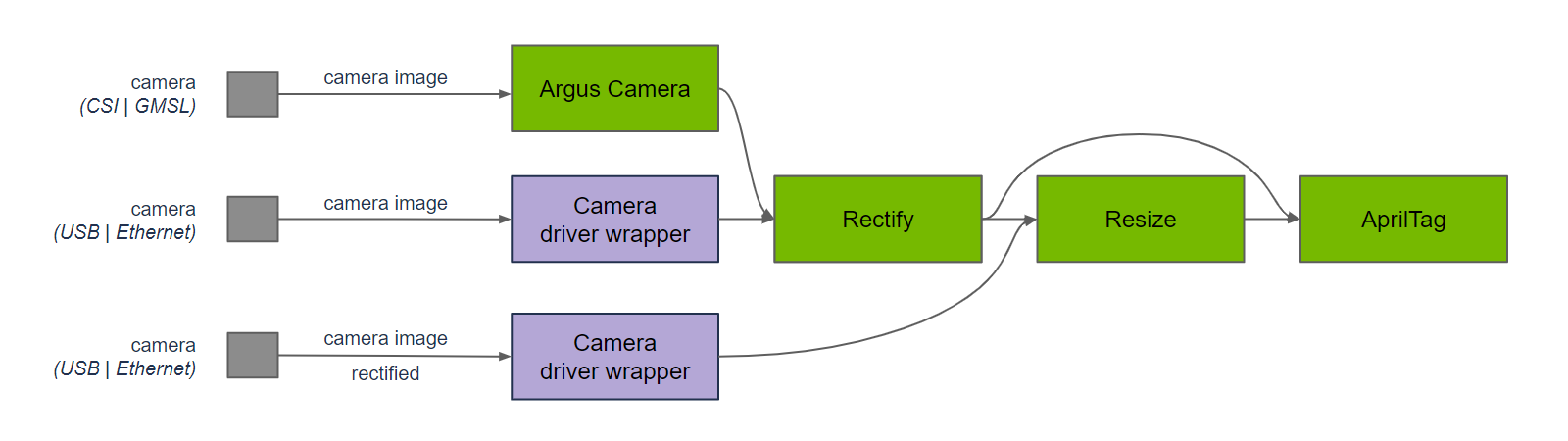

A common graph of nodes connects from an input camera through rectify and resize to AprilTag. Rectify warps the input camera image into a rectified, undistorted output image; this node may not be necessary if the camera driver provides rectified camera images. Resize is often used to downscale higher resolution cameras into the desired resolution for AprilTags if needed. The input resolution to AprilTag is selected by the required detection distance for the application, as a minimum number of pixels are required to perform an AprilTag detection and classification. For example, an 8mp input image of 3840×2160 may be much larger than necessary and a 4:1 downscale to 1920x1080 could make more efficient use of compute resources and satisfy the required detection distance of the application. Each of the green nodes in the above diagram is NVIDIA accelerated, allowing for a high-performance compute graph from camera input to AprilTag detection.

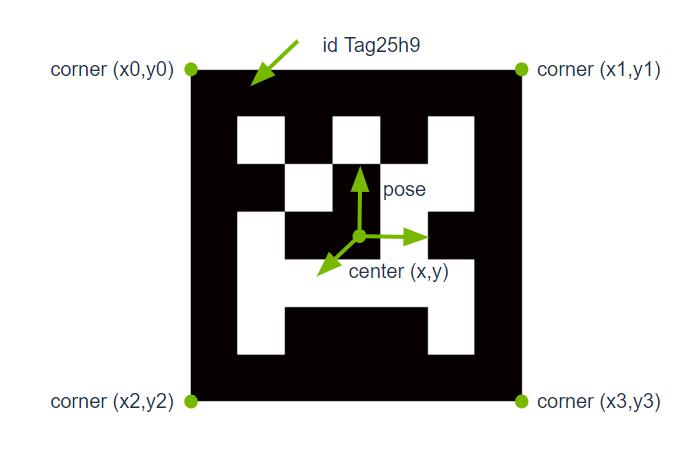

As illustrated above, detections are provided in an output array for the number of AprilTag detections in the input image. Each entry in the array contains the ID (two-dimensional bar code) for the AprilTag, the four corners ((x0, y0), (x1, y1), (x2, y2), (x3, y3)) and center (x, y) of the input image, and the pose of the AprilTag.

[!Note] This package provides the option through the backend parameter to leverage either the GPU or CPU on all NVIDIA-powered platforms or PVA on Jetson devices for AprilTag detection.

[!Note] This package is a NVIDIA-accelerated drop-in replacement for the CPU version of ROS AprilTag

[!Note] For more information, including the paper and the reference CPU implementation, refer to the AprilTag repository

Isaac ROS NITROS Acceleration

This package is powered by NVIDIA Isaac Transport for ROS (NITROS), which leverages type adaptation and negotiation to optimize message formats and dramatically accelerate communication between participating nodes.

Performance

Sample Graph	Input Size	AGX Thor T5000	AGX Thor T4000	DGX Spark	x86_64 w/ RTX 5090
AprilTag Node	720p	385 fps 2.9 ms @ 30Hz	280 fps 11 ms @ 30Hz	462 fps 2.4 ms @ 30Hz	596 fps 2.0 ms @ 30Hz
AprilTag Graph	720p	354 fps 5.2 ms @ 30Hz	273 fps 15 ms @ 30Hz	546 fps 3.9 ms @ 30Hz	596 fps 2.8 ms @ 30Hz

Documentation

Please visit the Isaac ROS Documentation to learn how to use this repository.

Packages

isaac_ros_apriltag

Latest

Update 2026-02-19: Support for DGX Spark and JetPack 7.1
