The `costmap_generator` Package

costmap_generator

This node reads PointCloud and/or DetectedObjectArray and creates an OccupancyGrid and GridMap. VectorMap is optional.

You need to subscribe at least one of PointCloud or DetectedObjectArray to generate costmap.

Input topics

/points_no_ground (sensor_msgs::PointCloud2) : from ray_ground_filter or compare map filter. It contains filtered points with the ground removed.

/prediction/moving_predictor/objects (autoware_msgs::DetectedObjectArray): predicted objects from naive_motion_predict.

/vector_map: from the VectorMap publisher. /tf to obtain the transform between the vector map(map_frame) and the sensor(sensor_frame) .

Output topics

/semantics/costmap (grid_map::GridMap) is the output costmap, with values ranging from 0.0-1.0.

/semantics/costmap_generator/occupancy_grid (nav_msgs::OccupancyGrid) is the output OccupancyGrid, with values ranging from 0-100.

How to launch

It can be launched as follows:

Using the Runtime Manager by clicking the costmap_generator checkbox under the Semantics section in the Computing tab.
From a sourced terminal executing: roslaunch costmap_generator costmap_generator.launch.

Parameters available in roslaunch and rosrun

use_objects Whether if using DetectedObjectArray or not (default value: true).
use_points Whether if using PointCloud or not (default value: true).
use_wayarea Whether if using Wayarea from VectorMap or not (default value: true).
objects_input Input topic for autoware_msgs::DetectedObjectArray (default value: /prediction/moving_predictor/objects).
points_input Input topic for sensor_msgs::PointCloud2 (default value: points_no_ground).
lidar_frame Lidar sensor coordinate. Cost is calculated based on this coordinate (default value: velodyne).
map_frame VectorMap’s coordinate. (default value: map).
grid_min_value Minimum cost for gridmap (default value: 0.0).
grid_max_value Maximum cost for gridmap (default value: 1.0).
grid_resolution Resolution for gridmap (default value: 0.2).
grid_length_x Size of gridmap for x direction (default value: 50).
grid_length_y Size of gridmap for y direction (default value: 30).
grid_position_x Offset from coordinate in x direction (default value: 20).
grid_position_y Offset from coordinate in y direction (default value: 0).
maximum_lidar_height_thres Maximum height threshold for pointcloud data (default value: 0.3).
minimum_lidar_height_thres Minimum height threshold for pointcloud data (default value: -2.2).
expand_rectangle_size Expand object’s rectangle with this value (default value: 1).
size_of_expansion_kernel Kernel size for blurring effect on object’s costmap (default value: 9).

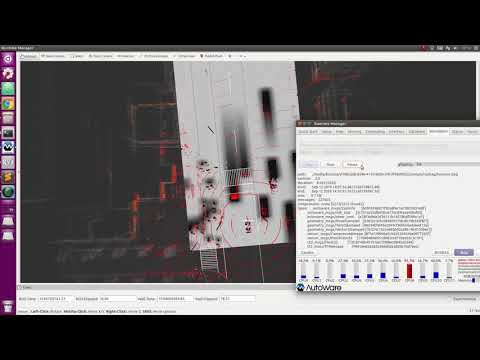

Instruction Videos

costmap_generator_lanelet2

This node behave exactly like costmap_generator node, but uses different map format for wayarea.

Input topics

/points_no_ground (sensor_msgs::PointCloud2) : from ray_ground_filter or compare map filter. It contains filtered points with the ground removed.

/prediction/moving_predictor/objects (autoware_msgs::DetectedObjectArray): predicted objects from naive_motion_predict.

/lanelet_map_bin: from the lanelet2_map_loader. /tf to obtain the transform between the vector map(map_frame) and the sensor(sensor_frame) .

Output topics

same as costmap_generator

How to launch

run:

roslaunch costmap_generator costmap_generator_lanelet2.launch
