lbr_fri_ros2_stack
ROS 2 packages for the KUKA LBR, including communication to the real robot via the Fast Robot Interface (FRI) and Gazebo simulation support. Included are the iiwa7, iiwa14, med7, and med14.

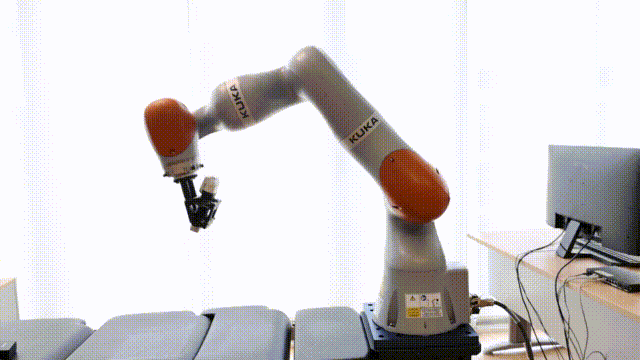

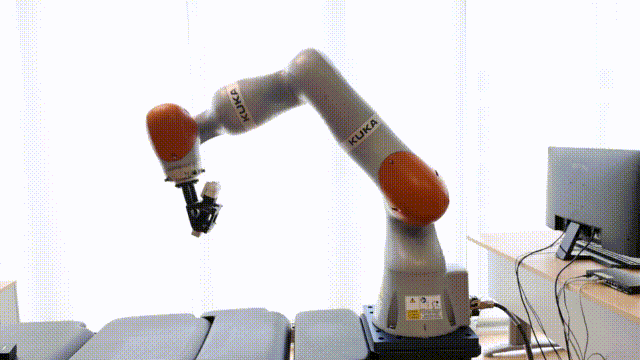

| LBR IIWA 7 R800 | LBR IIWA 14 R820 | LBR Med 7 R800 | LBR Med 14 R820 |
|---|---|---|---|
 |
 |
 |
 |
Status
| OS | ROS Distribution | FRI Version | Build Status |
| :————- | :————— | :———- | :———– |
| Ubuntu-22.04 | humble | 1.11 |
|
| Ubuntu-22.04 | humble | 1.14 |
|
| Ubuntu-22.04 | humble | 1.15 |
|
| Ubuntu-22.04 | humble | 1.16 |
|
| Ubuntu-22.04 | humble | 2.5 |
|
| Ubuntu-22.04 | humble | 2.7 |
|
Documentation
Full documentation available on Read the Docs.
Quick Start
- Install ROS 2 development tools
sudo apt install ros-dev-tools
- Create a workspace, clone, and install dependencies
source /opt/ros/humble/setup.bash
export FRI_CLIENT_VERSION=1.15
mkdir -p lbr-stack/src && cd lbr-stack
vcs import src --input https://raw.githubusercontent.com/lbr-stack/lbr_fri_ros2_stack/humble/lbr_fri_ros2_stack/repos-fri-${FRI_CLIENT_VERSION}.yaml
rosdep install --from-paths src -i -r -y
[!NOTE] FRI client is cloned from fri and must be available as branch, refer README.
- Build
colcon build --symlink-install
- In terminal 1, launch a mock setup via
source install/setup.bash
ros2 launch lbr_bringup mock.launch.py \
model:=iiwa7 # [iiwa7, iiwa14, med7, med14]
[!TIP] List all arguments for the launch file via
ros2 launch lbr_bringup mock.launch.py -s
- In terminal 2, visualize the setup via
source install/setup.bash
ros2 launch lbr_bringup rviz.launch.py \
rviz_cfg_pkg:=lbr_bringup \
rviz_cfg:=config/mock.rviz
Now, run the demos. To get started with the real robot, checkout the Hardware Setup.
Repositories Using This Project
- KUKA ROS2 controllers — A repository for controlling KUKA LBR iiwa and med robots using various control algorithms.
|
|
|
Citation
If you enjoyed using this repository for your work, we would really appreciate ❤️ if you could leave a ⭐ and / or cite it, as it helps us to continue offering support.
