Stretch Simulation in ROS2
Use this package to use ROS2 with Stretch in Mujoco.
System Requirements
It is recommended to run this package on an Ubuntu 22.04 workstation with an Nvidia graphics card or a WSL2 environment with GPU acceleration.
Minimum: 16GB of RAM. Recommended: 32GB of RAM.
This package is not supported on Metal (MacOS) at this time due to the lack of GPU acceleration and OpenGL 1.5+ support in Docker, and slow performance in UTM with a virtual machine.
Nav2
First go through the Getting Started guide to set up your environment.
Mapping
This section is similar to https://docs.hello-robot.com/0.3/ros2/navigation_stack/#mapping, but uses the Stretch simulation environment.
To map the simulated environment, run the following:
# Terminal 1: Slam Toolbox
ros2 launch stretch_nav2 online_async_launch.py use_sim_time:=true
# Optional: Navigation bringup:
ros2 launch stretch_nav2 navigation.launch.py use_slam:=true use_sim_time:=true use_rviz:=true teleop_type:=none
# Terminal 2: Stretch Mujoco Driver
export MUJOCO_GL=egl # On Ubuntu, tell Mujoco to use the GPU
ros2 launch stretch_simulation stretch_mujoco_driver.launch.py use_mujoco_viewer:=true mode:=navigation
# Terminal 3: Keyboard Teleop
ros2 service call /switch_to_navigation_mode std_srvs/srv/Trigger
ros2 run teleop_twist_keyboard teleop_twist_keyboard --ros-args --remap cmd_vel:=/stretch/cmd_vel
To save your map, run:
mkdir ${HELLO_FLEET_PATH}/maps
ros2 run nav2_map_server map_saver_cli -f ${HELLO_FLEET_PATH}/maps/<map_name>
Navigation
To run navigation on a previously generated map, run:
# Terminal 1: Stretch Mujoco Driver
ros2 launch stretch_simulation stretch_mujoco_driver.launch.py use_mujoco_viewer:=true use_rviz:=false mode:=navigation
# Terminal 2: Navigation
ros2 service call /switch_to_navigation_mode std_srvs/srv/Trigger
ros2 launch stretch_nav2 navigation.launch.py map:=${HELLO_FLEET_PATH}/maps/<map_name>.yaml use_sim_time:=true use_rviz:=true teleop_type:=none
You may want to dynamically reduce the cost_map inflation radius for most Robocasa environments:
ros2 param get /global_costmap/global_costmap inflation_layer.inflation_radius
ros2 param get /local_costmap/local_costmap inflation_layer.inflation_radius
ros2 param set /global_costmap/global_costmap inflation_layer.inflation_radius 0.20
ros2 param set /local_costmap/local_costmap inflation_layer.inflation_radius 0.20
Pre-mapped scene
There are maps included in this package that you can use with navigation out of the box.
Launch the pre-mapped environment using the following commands:
# Terminal 1
ros2 launch stretch_simulation stretch_mujoco_driver.launch.py use_mujoco_viewer:=true mode:=navigation robocasa_layout:='G-shaped' robocasa_style:=Modern_1
# Terminal 2
ros2 launch stretch_nav2 navigation.launch.py map:=~/ament_ws/src/stretch_ros2/stretch_simulation/maps/gshaped_modern1_robocasa.yaml use_sim_time:=true use_rviz:=true teleop_type:=none
# Terminal 3
ros2 service call /stow_the_robot std_srvs/srv/Trigger
ros2 param set /global_costmap/global_costmap inflation_layer.inflation_radius 0.20
ros2 param set /local_costmap/local_costmap inflation_layer.inflation_radius 0.20
Web Teleop
You can use Stretch Web Teleop with the Stretch Simulation environment!
Before you start, install the dependencies for Stretch Web Teleop by following these instructions.
Use the following commands to start Stretch Mujoco with Web Teleop:
parallel_terminal="gnome-terminal --tab -- /bin/bash -c " # or "xterm -e"
# Terminal 1
$parallel_terminal "MUJOCO_GL=egl ros2 launch stretch_simulation stretch_mujoco_driver.launch.py use_mujoco_viewer:=false mode:=position robocasa_layout:='G-shaped' robocasa_style:=Modern_1 use_rviz:=false use_cameras:=true map:=~/ament_ws/src/stretch_ros2/stretch_simulation/maps/gshaped_modern1_robocasa.yaml" &
# Terminal 2
$parallel_terminal "ros2 launch stretch_simulation stretch_simulation_web_interface.launch.py" &
# Terminal 3
$parallel_terminal "cd ~/ament_ws/src/stretch_web_teleop; npm run localstorage" &
# Terminal 4
$parallel_terminal "cd ~/ament_ws/src/stretch_web_teleop; sudo node ./server.js" &
# Terminal 4
$parallel_terminal "cd ~/ament_ws/src/stretch_web_teleop; node start_robot_browser.js" &

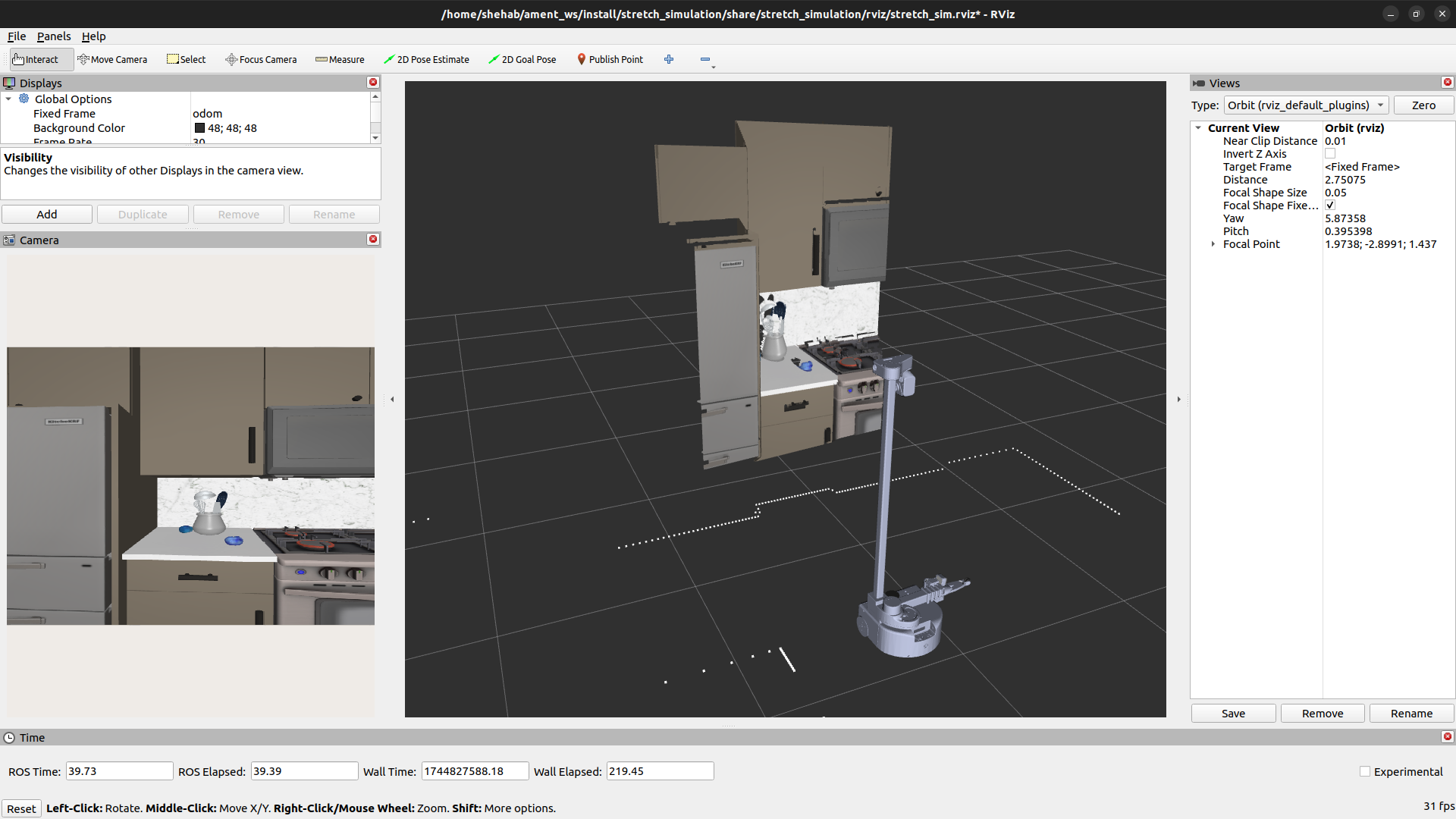

Cameras and PointClouds
Please use the use_cameras:=true argument to enable cameras and pointclouds. e.g. ros2 launch stretch_simulation stretch_mujoco_driver.launch.py use_mujoco_viewer:=true mode:=navigation use_cameras:=true
There are five camera topics being published:
- RGB and Depth for the D405 camera in the gripper.
- RGB and Depth or the D435i camera in the head.
- RGB for the wide-lens camera in the head.
The RGB and Depth frames are used to create two PointCloud2 topics as well.
Stretch Drivers
Simulation Drivers interface with the simulator to read and write data.
Simulation Drivers mimic the StretchDriver in stretch_core, which talks to the real robot.
You could display all the launch options available to the Stretch Mujoco Driver using: ros2 launch stretch_simulation stretch_mujoco_driver.launch.py --show-args:
'broadcast_odom_tf':
Whether to broadcast the odom TF. Valid choices are: ['True', 'False']
(default: 'True')
'fail_out_of_range_goal':
Whether the motion action servers fail on out-of-range commands. Valid choices are: ['True', 'False']
(default: 'False')
'mode':
The mode in which the ROS driver commands the robot. Valid choices are: ['position', 'navigation', 'trajectory', 'gamepad']
(default: 'position')
'use_rviz':
One of: ['true', 'false']
(default: 'true')
'use_mujoco_viewer':
One of: ['true', 'false']
(default: 'true')
'use_cameras':
One of: ['true', 'false']
(default: 'false')
'use_robocasa':
One of: ['true', 'false']
(default: 'true')
'robocasa_task':
no description given
(default: 'PnPCounterToCab')
'robocasa_layout':
One of: ['Random', 'One wall', 'One wall w/ island', 'L-shaped', 'L-shaped w/ island', 'Galley', 'U-shaped', 'U-shaped w/ island', 'G-shaped', 'G-shaped (large)', 'Wraparound']
(default: 'Random')
'robocasa_style':
One of: ['Random', 'Industrial', 'Scandanavian', 'Coastal', 'Modern_1', 'Modern_2', 'Traditional_1', 'Traditional_2', 'Farmhouse', 'Rustic', 'Mediterranean', 'Transitional_1', 'Transitional_2']
(default: 'Random')
You can also set the node’s argumentarguments=["--ros-args", "--log-level", "debug"] in the launch file to display Sim-to-Real time and other useful debug information.
Getting Started
You should go through all the sections in Getting Started to run this package correctly.
NOTE: If you are running on a Stretch robot, you can skip to Setting up Mujoco
Estimated install time: ~1-2hrs.
Install ROS2 Humble (10 minutes)
NOTE: Please do not run this step if you are running on a Stretch robot.
The commands below are taken from this guide: https://docs.ros.org/en/humble/index.html
sudo apt install software-properties-common
sudo add-apt-repository universe
sudo apt update && sudo apt install curl -y
sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key -o /usr/share/keyrings/ros-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] http://packages.ros.org/ros2/ubuntu $(. /etc/os-release && echo $UBUNTU_CODENAME) main" | sudo tee /etc/apt/sources.list.d/ros2.list > /dev/null
sudo apt update
sudo apt install ros-humble-desktop ros-dev-tools rviz python3-pip
source /opt/ros/humble/setup.bash
Setting up ament_ws (1 hour)
NOTE: Please do not run this step if you are running on a Stretch robot.
If you are not running this package on a robot NUC (which is not recommended), you will need to set up a ROS2 environment similar to the environment that ships with Stretch.
Please run these commands to install the environment. This will delete the existing ~/ament_ws directory, so please proceed with caution.
First you should install NodeJS>=21.x and npm if you don’t already have them:
curl -sL https://deb.nodesource.com/setup_22.x | sudo -E bash -
sudo apt install -y nodejs
curl -sL https://raw.githubusercontent.com/hello-robot/stretch_ros2/refs/heads/humble/stretch_simulation/stretch_create_ament_workspace.sh > /tmp/stretch_create_ament_workspace.sh && sudo bash /tmp/stretch_create_ament_workspace.sh
# Optional: add source install/setup.bash to .bashrc:
echo 'source ~/ament_ws/install/setup.bash' >> ~/.bashrc
Note: If you run into a colcon build error: “fatal error: numpy/ndarrayobject.h: No such file or directory”, run
sudo ln -s ~/.local/lib/python3.10/site-packages/numpy/core/ /usr/include/numpyto resolve it.
A successful ament_ws setup will look like this:
$ ls ~/ament_ws/src
audio_common realsense-ros respeaker_ros2 ros2_numpy rosbridge_suite sllidar_ros2 stretch_ros2 stretch_tutorials stretch_web_teleop tf2_web_republisher_py
Setting up URDF (15 minutes)
Run the commands below or follow the instruction in the stretch_description #updating-the-urdf README file to set up the URDF meshes.
source ~/ament_ws/install/setup.bash
python3 -m pip install -U hello-robot-stretch-urdf
git clone https://github.com/hello-robot/stretch_urdf.git --depth 1 /tmp/stretch_urdf
python3 -m pip install hello-robot-stretch-body
python3 /tmp/stretch_urdf/tools/stretch_urdf_ros_update.py
python3 /tmp/stretch_urdf/tools/stretch_urdf_ros_update.py --ros2_rebuild
A successful URDF update will look like this:
$ ls ~/ament_ws/src/stretch_ros2/stretch_description/urdf/
d405 stretch_aruco.xacro stretch_description_SE3_eoa_wrist_dw3_tool_nil.xacro stretch_head_nav_cam.xacro stretch_tool_sg3.xacro
d435i stretch_base_imu.xacro stretch_description_SE3_eoa_wrist_dw3_tool_sg3.xacro stretch_laser_range_finder.xacro stretch_tool_tablet_12in.xacro
export_urdf_license_template.md stretch_d405_sg3.xacro stretch_description_SE3_eoa_wrist_dw3_tool_tablet_12in.xacro stretch_main.xacro stretch_uncalibrated.urdf
export_urdf.sh stretch_d435i.xacro stretch_description.xacro stretch_respeaker.xacro stretch_wrist_dw3.xacro
Setting up Mujoco (15 minutes)
This ROS 2 package includes nodes and launch files that use the stretch_mujoco repo to interface with Mujoco.
Run the following, after having done the previous ament_ws setup steps, to start interacting with Stretch in Mujoco using ROS 2:
pip3 install --upgrade pip #This is important after a fresh install of Ubuntu, for edittable installation of dependencies
source ~/ament_ws/install/setup.bash
# This script is interactive, it will ask you if you want to install robocasa model files:
sh ~/ament_ws/src/stretch_ros2/stretch_simulation/stretch_mujoco_driver/setup.sh
pip install PyOpenGL==3.1.4 # Fixes AttributeError: module 'OpenGL.EGL' has no attribute 'EGLDeviceEXT'
cd ~/ament_ws
source ./install/setup.bash
colcon build
ros2 launch stretch_simulation stretch_mujoco_driver.launch.py mode:=navigation
Setting up Stretch Web Teleop
Make sure you’ve already completed everything under Setting up ament_ws above.
Run the following commands to get IK for the gripper working:
cd stretch_description/urdf
cp ./stretch_uncalibrated.urdf stretch.urdf
sudo apt install rpl
./export_urdf.sh # It's okay if it fails on calibrated params
mkdir -p $HELLO_FLEET_PATH/$HELLO_FLEET_ID/exported_urdf
cp -r ./exported_urdf/* $HELLO_FLEET_PATH/$HELLO_FLEET_ID/exported_urdf
